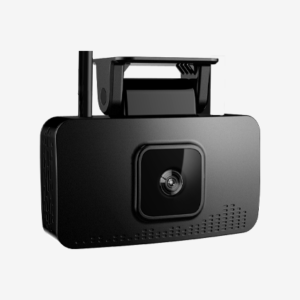

Dual Dashcam

$250.00

Designed to provide the most comprehensive view of the vehicle and the driver’s behavior, which makes them ideal for tracking, and providing evidence in case of an accident.

Monthly Subscription:

$25/per device

Subscription fee will be charged after your device is activated.



Category:

Description

These dashcams are specifically designed to offer a thorough view of the vehicle and the driver’s actions, which makes them highly effective for tracking and recording evidence in the event of an accident. The dashcams come equipped with a 3G/4G module and various alarms, such as those for hard acceleration, hard deceleration, and over speed to help monitor the driver’s behavior. They capture all that is happening in front of the vehicle, providing drivers with greater peace of mind while on the road.

Features

  • Up to 2ch 1080p + 1ch 720p video input
  • H.265/H.264 video format
  • GPS, WIFI, 4G LTE built-in
  • 6-axis G-sensor, support HA/HB/HC detection
  • *Support AI (optional): Face recognition, DMS ADAS
  • UP to 4 servers linked at the same
  • Compatible with various FMS platforms

Specifications

1

Model
Hero-ME40-02
System
Embedded Linux
Language
3G/4G
English/Chinese (support customization)
Built-in 3G/4G module, different module option for different bands of region
WIFI
Built-in WIFI module, AP mode/CPE mode.
Support configuration via mobile APP ELDRider-itool
Position
Built-in dual mode position mode: GPS+Beidou, GPS+GLONASS (optional)
G-Sensor
HA/HB/HC(optional)
2

Video

Front view camera
1080p@30fps, Diagonal angle: 140 degree, horizontal angle: 116 degree
Driver camera
1080p@30fps, Diagonal angle: 140 degree, horizontal angle: 116 degree
3G/4G
Extend via wire, for normal surveillance or DMS camera, 720p
Video compression
H.265 (Main/Sub)
H.265 (Main/Sub
3

Audio

Audio input
2
Audio output
1
4

Storage

TF card
512GB*1
5

Network

3G/4G module
Multiple frequency bands for different region
Protocol
H-protocol (webAPI optional)
Server
VSS, third-party FMS platform
6

Alarms

Basic
1/O, HA/HB/HC (driver behavior), over speed alarm etc.
*DMS (Optional)
1. Fatique detection (Eyeclose detection, Yawing detection)
2. Distracted detection,
3. Phone call detection,
4. Smoke detection,
5. No driver detection,
6. Infrared Sunglasses,
7. Camera covered
8. Face recognition
7

Interface

USB
1 x Type C, export video and log, maintenance
Input
2 x DI
Output
1 x DO
RS232
1
TF card slot
1
SIM card slot
1
Speaker
1 (built-in) 8 ohm, 1.5W
Mic
1 (built-in)
8

Others

Working voltage
8-36V
Protection of power loss
Support saving crucial video clips when power loss or critical accidents
Sleep Mode
Support low-power mode after ignition off
Working temperature
-4°F to 158°F
Dimensions
4.84in*3.51in*1.83in
Protection
IP54
Certificate
CE/FCC/MIL





* Additional $5 charge per month
